Trans-Tech G810 YAG Ferrite at Zero Magnetic Bias
Trans-Tech “Ferrite 50”
The MPN measurement system can accommodate samples either in loose powder form, or as stacked pressed pellets or as a single solid piece (usually cut by diamond sawing or by diamond core-drilling). This allows the experimenter the option of choosing the physical state required, and, more importantly for practical applications, to do the measurements at the required density!
After measurement of µ′ and µ′′, the values of the magnetic tanδm can be calculated ( see formulas in “Details of Technique” menu ).

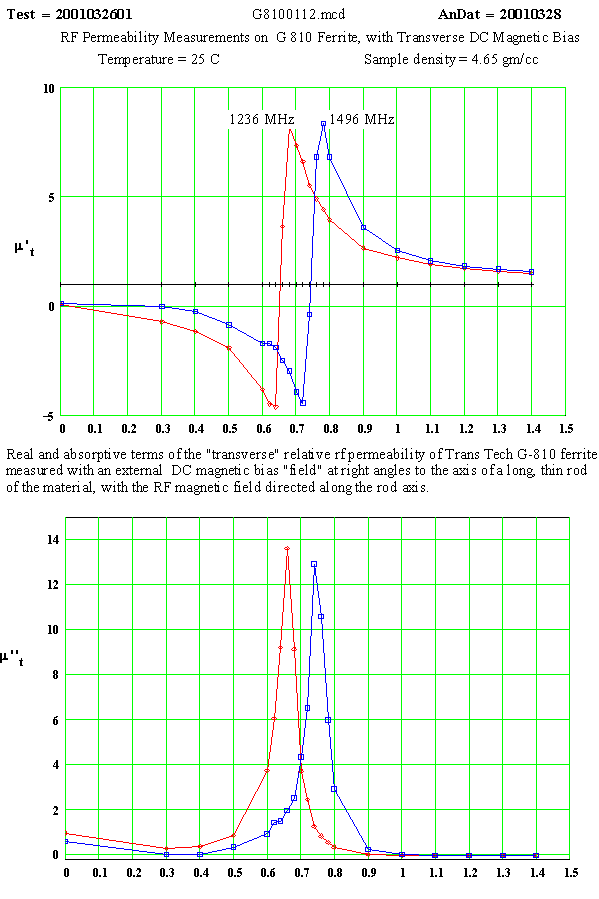

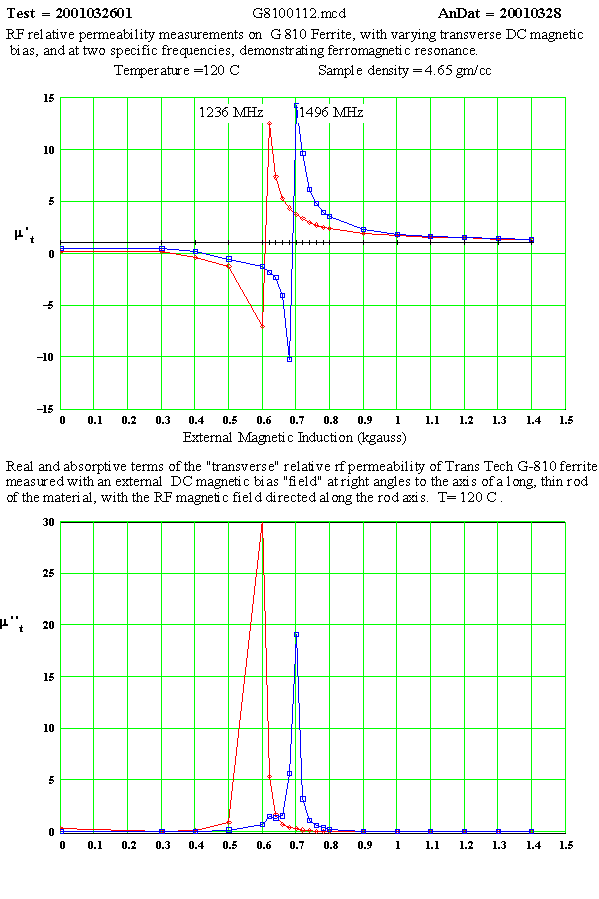

MPN Measurement of Complex Magnetic Permeability over the Ferrimagnetic Resonance for G-810 Ferrite

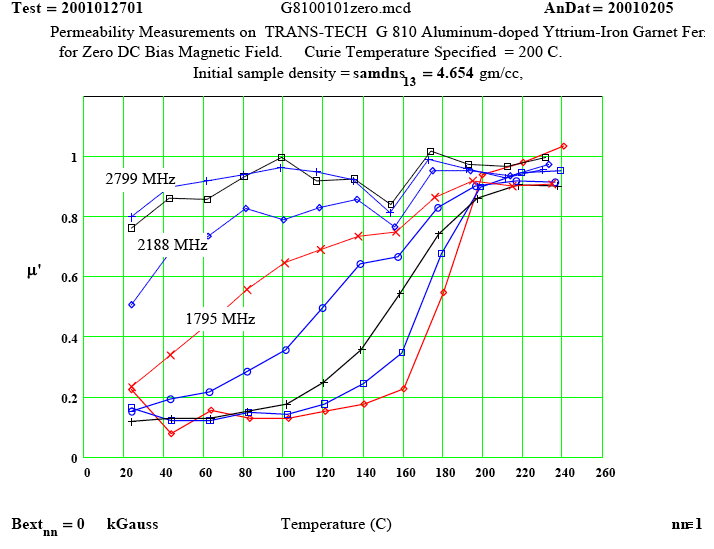

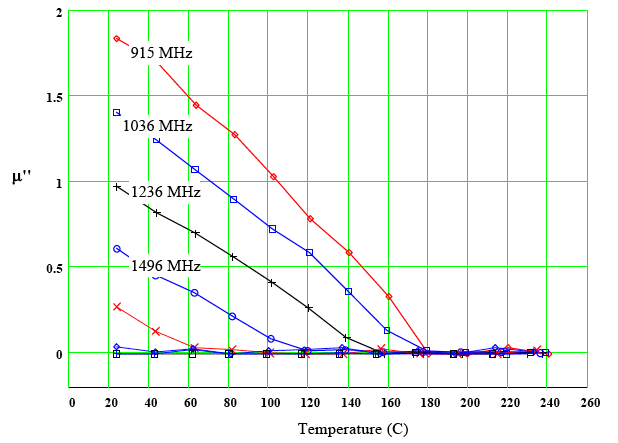

MPN Measurement of Complex Magnetic Permeability of TRANS-TECH G-810 Ferrite for Zero DC Magnetic Field Bias

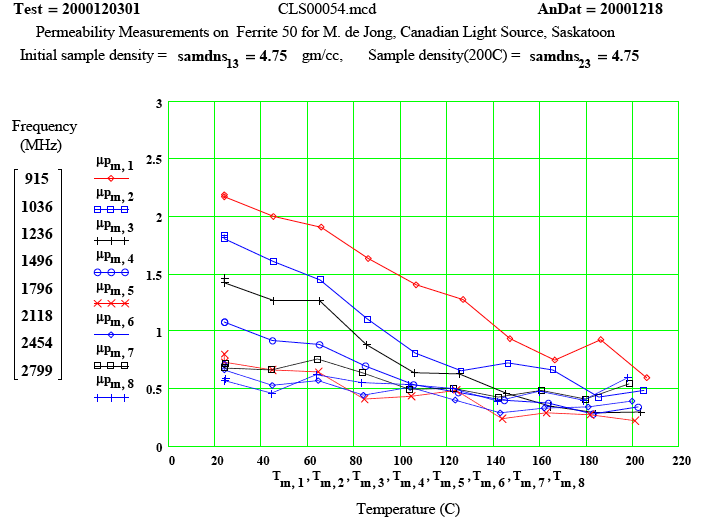

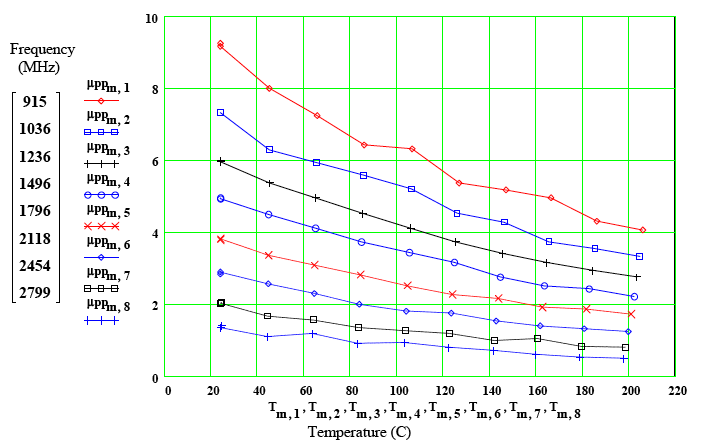

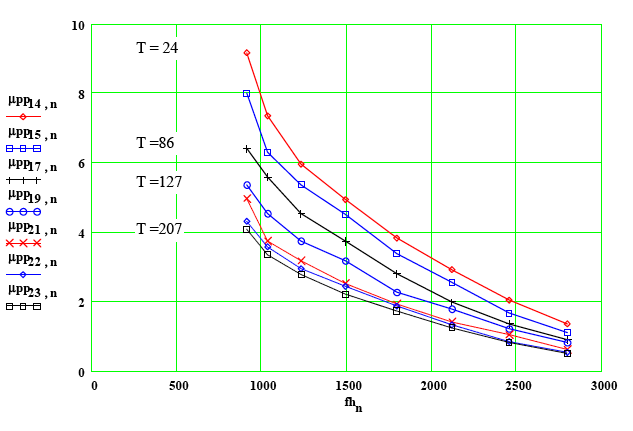

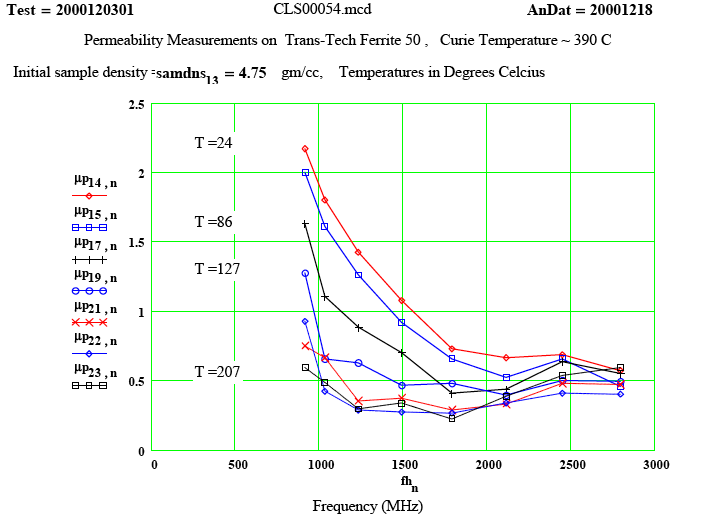

Trans-Tech “Ferrite 50” – a lithium nickel zinc manganese ferrite
Please feel free to phone or e-mail and discuss possible measurements. We treat all communications as confidential unless advised otherwise.
